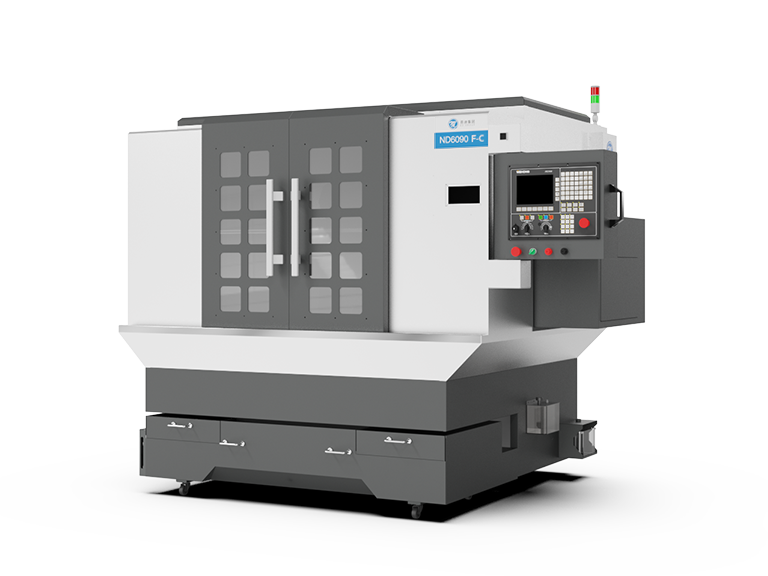

ND6090F-C Glass CNC Machine

▪ Applicable Industries: Car central control touch screen glass, Smart appliance glass, Smart home glass, Smart terminal protection glass, Smart security glass, Smart wearable glass, etc
▪ Applicable Material: Glass
▪ Payment Terms: T/T L/C Visa Mastercard American Express Discover cards etc
▪ After-sale Service: Free professional machine operation training (Option for service in site)
▪ Supply Ability: 200 Sets per Month

PRODUCT DETAILS

ND6090F-C is suitable for precision processing of glass products. The machine is based on granite body, gantry and guide rail bases. It is equipped with a high-precision screw guide rail and high-power/RPM spindle. The whole system is controlled by the servo and processing of multiple processes through programming completely. It can also be equipped with CCD camera,full cover.

ND6090F-C CNC glass machine has extensive performance characteristics. It is application for car central control touch screen glass, smart appliance glass, smart home glass, smart terminal protection glass, smart security glass, smart wearable glass industry. It main processing glass materials.

PRODUCT PARAMETERS

Standard

Option

Working distance（X/Y/Z axis）	900x600x165mm
Working table（X/Y/Z axis）	900x600mm
Max RPM	40000rpm
Power	2.5KW
Machine dimension	2570x1680x2150mm
Machine weight	2950kg

CCD Camera	Ultra high resolution
Full cover	Complete enclosed protection

PRODUCT ADVANTAGES

Machine Structure

Machine body, gantry, base etc. are made of "Jinan Black" natural granite with all precision surfaces manual grinding to achieve and maintain stable structure and high precision.

Precision Combination

Guideway, ball screw and mechanical parts are directly installed on the grinded surface of "Jinan Black" black granite to achieve the best accuracy combination after assembly.

Control System

Adopt μ level control system with powerful tools management, compensation production, humanized interface, and automatic loading and unloading functions.
