ND4040 Series

ND4040 Metal CNC Machine

▪ Applicable Industries: Embossing tools, Embossing dies (coining dies), Tools and molds for medical technology, Electrodes, Cliches for security papers, Hot foil stamp dies, Forging dies, Injection molds for the toy industry, Tool- and mold industry
▪ Applicable Material: Copper/brass, aluminum, zinc, magnesium, stainless steel, carbon steel etc
▪ Payment Terms: T/T L/C
▪ After-sale Service: Free professional machine operation training (Option for service in site)
▪ Supply Ability: 200 Sets per Month

PRODUCT DETAILS

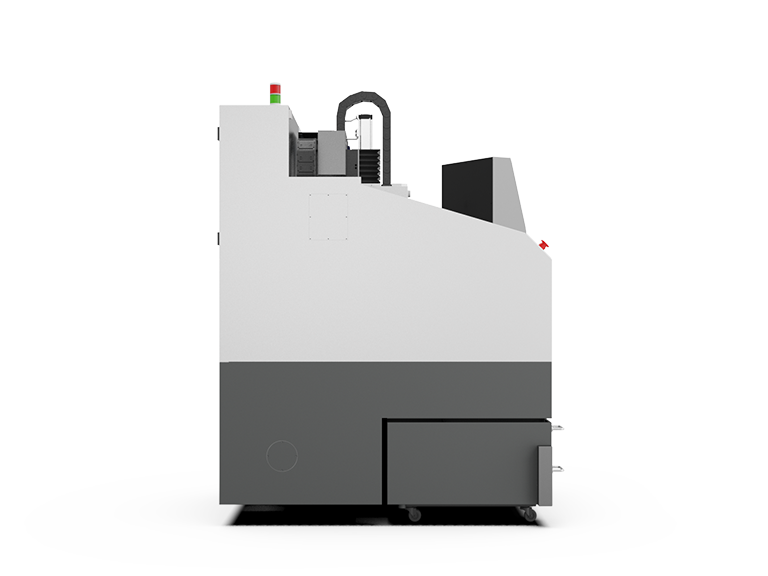

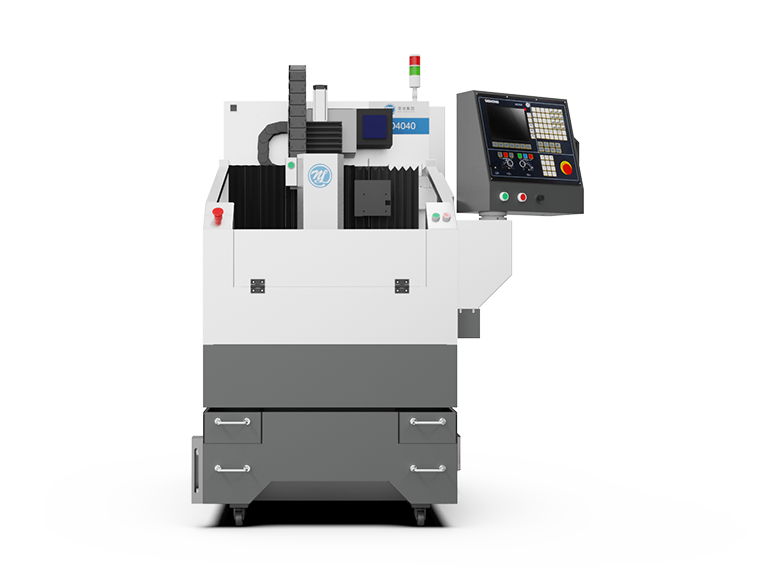

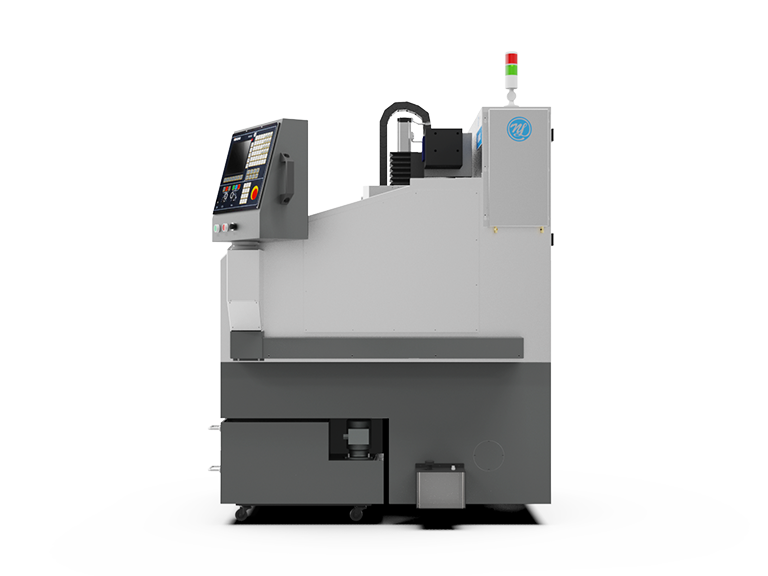

ND4040 CNC machine is suitable for precision machining of small metal products. The design concept is based on a granite bed gantry and guide rail base, equipped with high-precision screw guide rails and high-power spindle.  The entire system is controlled by servo, and multiple processes of machining are completed through programming. CCD camera, probe, probe linear gauge, vacuum table, full cover, vacuum pump, air compressor, programming software, auto tools changer system can be selected.


ND4040 CNC machine have a wide range of performance characteristics, and are suitable for advertising, printing, packaging, mold/dies and other industries. The main processing materials are metals, such as brass/copper, aluminum, zinc, magnesium, stainless steel and carbon steel which can be used in mold and tool manufacturing, embossing tools, embossing dies (coining dies), tools and molds, electrodes, cliches, hot foil stamp dies, forging dies, Injection molds for the toy industry, tool & mold industry and other fields.

PRODUCT PARAMETERS

Standard
Option
Working distance(X/Y/Z axis) 400x400x165mm
Working table(X/Y/Z axis) 400x400mm
Max RPM 40000rpm
Power 4.0KW
Machine dimension 1176x1380x1900mm
Machine weight 1400kg

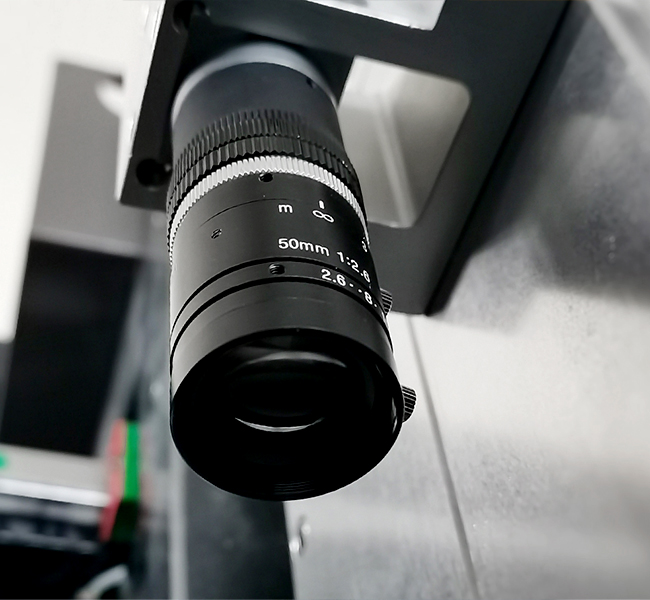

CCD Camera Ultra high resolution
Probe ± X, ± Y,+Z
Probe linear gauge Ultra high accuracy
Vacuum table Granite table/Aluminum table
Full cover Fully enclosed protection
Programming software ArtCam/AlphaCAM
Auto tools changer system 6/12

PRODUCT ADVANTAGES

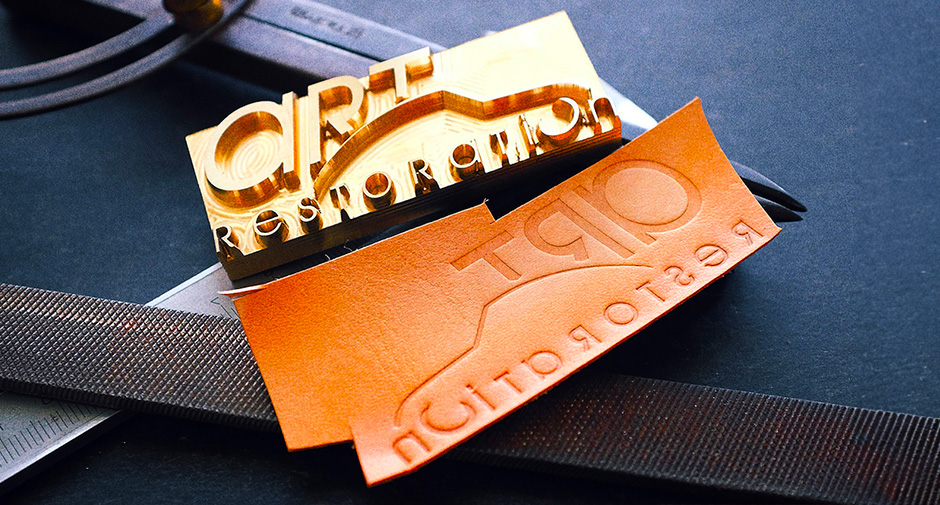

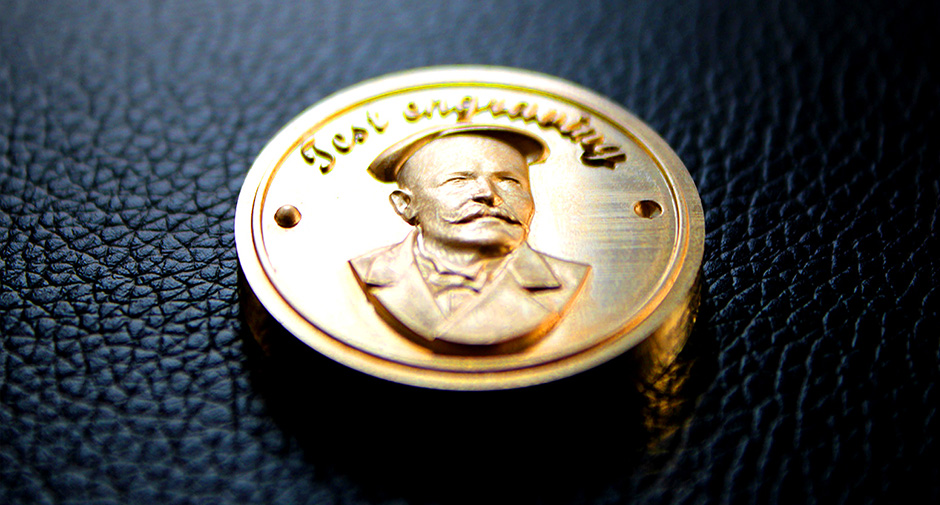

APPLICATION CASES

More +

VIDEO LEARN THE PRODUCT MORE

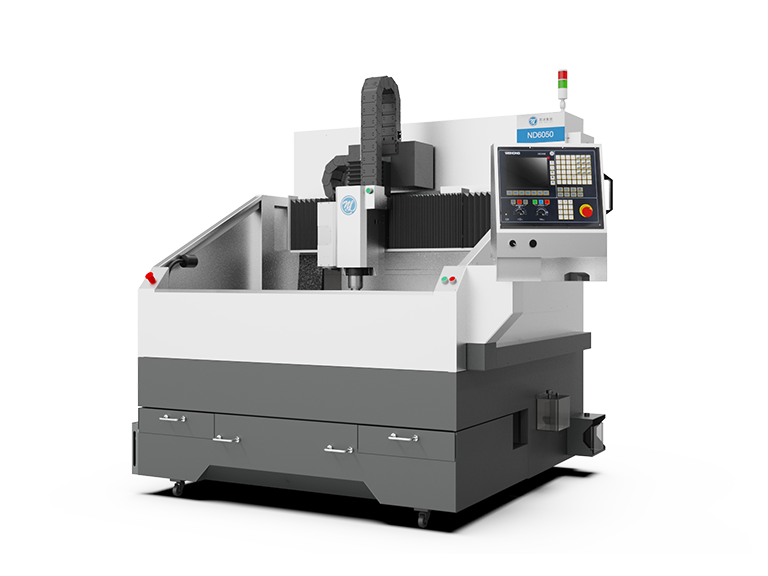

RELATED MACHINE

QUALITY CONTROL

RENISHAW Laser Interferometer

High Precision Granite Square Ruler

Optical Measuring Machine

High Precision Granite Surface Plate Ruler

Leverage Dial Gauge

COMPANY VIEW

Assembly Area Panorama

Factory Area

Delivery Area

Stocking Area
