ND1200 Series

ND1200 Metal CNC Machine

▪ Applicable Industries: Embossing tools, Embossing dies (coining dies), Tools and molds for medical technology, Electrodes, Cliches for security papers, Hot foil stamp dies, Forging dies, Injection molds for the toy industry, Tool- and mold industry
▪ Applicable Material: Copper/brass, aluminum, zinc, magnesium, stainless steel, carbon steel etc
▪ Payment Terms: T/T L/C
▪ After-sale Service: Free professional machine operation training (Option for service in site)
▪ Supply Ability: 200 Sets per Month

PRODUCT DETAILS

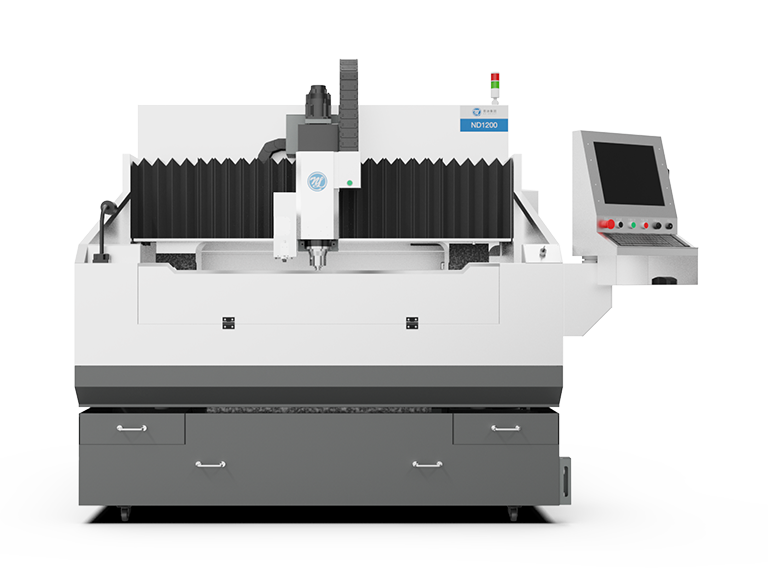

ND1200 CNC machine is suitable for precision machining of large-sized metal products. The design concept is based on a granite bed, gantry, and guide rail base, equipped with high-precision screw guide rails and high-power spindle. The entire system is controlled by servo, and multiple processes of machining are completed through programming. CCD camera, probe, probe linear gauge, rotation axis, vacuum table, vacuum pump, air compressor, programming software and auto tools changer system can be selected.


ND1200 CNC machine have a wide range of performance characteristics, and are suitable for advertising, printing, packaging, dies/mold and other industries. The main processing materials are metals, such as brass/copper, aluminum, zinc, magnesium, stainless steel and carbon steel which can be used in steel counter plate, crease plate, mold and tool manufacturing, embossing tools, embossing dies (coining dies), tools and molds, electrodes, cliches, hot foil stamp dies, forging dies, Injection molds for the toy industry, tool & mold industry and other fields.

PRODUCT PARAMETERS

Standard
Option
Working distance(X/Y/Z axis) 1200x800x150mm
Working table(X/Y/Z axis) 1200x800mm
Max RPM 36000rpm
Power 6.0KW
Machine dimension (half cover) 2550x1900x2050mm
Machine weight (half cover) 4500kg
CCD Camera Ultra high resolution
Probe ± X, ± Y,+Z
Probe linear gauge Ultra high accuracy
Vacuum table Granite table/Aluminum table
Full cover Fully enclosed protection
Programming software ArtCam/AlphaCAM
Auto tools changer system 16

PRODUCT ADVANTAGES

APPLICATION CASES

More +

VIDEO LEARN THE PRODUCT MORE

RELATED MACHINE

QUALITY CONTROL

RENISHAW Laser Interferometer

High Precision Granite Square Ruler

Optical Measuring Machine

High Precision Granite Surface Plate Ruler

Leverage Dial Gauge
